Overview
Coal mining in Limburg has been historically important. The coal mine
activities ceased by the 1960s, however, the effect of centuries-long industrialization still
affects the region. In 2015, on behalf of the Ministry of Economic Affairs, an expert working group

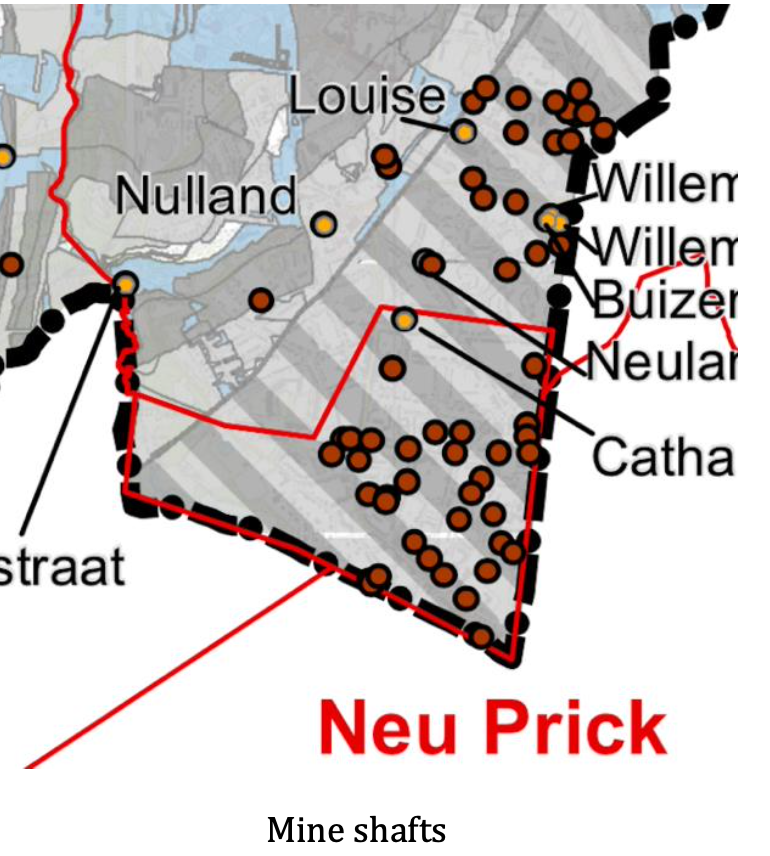

(a.k.a. GS-ZL) has been formed. The group released a report on the historical and industrial mine
shafts in Kerkrade, Limburg. The expert team suspected a possible leak from the closed shafts with
varying degrees depending on weather conditions.
CO2 is a gas that naturally occurs in the atmosphere (around 400ppm in open air, or 0.04% air
volume). At the level of 0.5% there’s the possibility of oxygen deprivation, at the level 4%, it is
a certainty). According to the detailed GS-ZL report, in some closed industrial mine shafts in
Kerkrade, CO2 levels up to 10% of the air volume. In any crack, the mines will leak the gas and
produce a hazardous environment. Both reports mentioned above agree on the measures to be taken,
that is to observe the fluctuation in CO2, and analyze with respect to seasonal fluctuations in the
atmospheric air pressure to predict possible leaks and create a risk map.
Preliminary findings

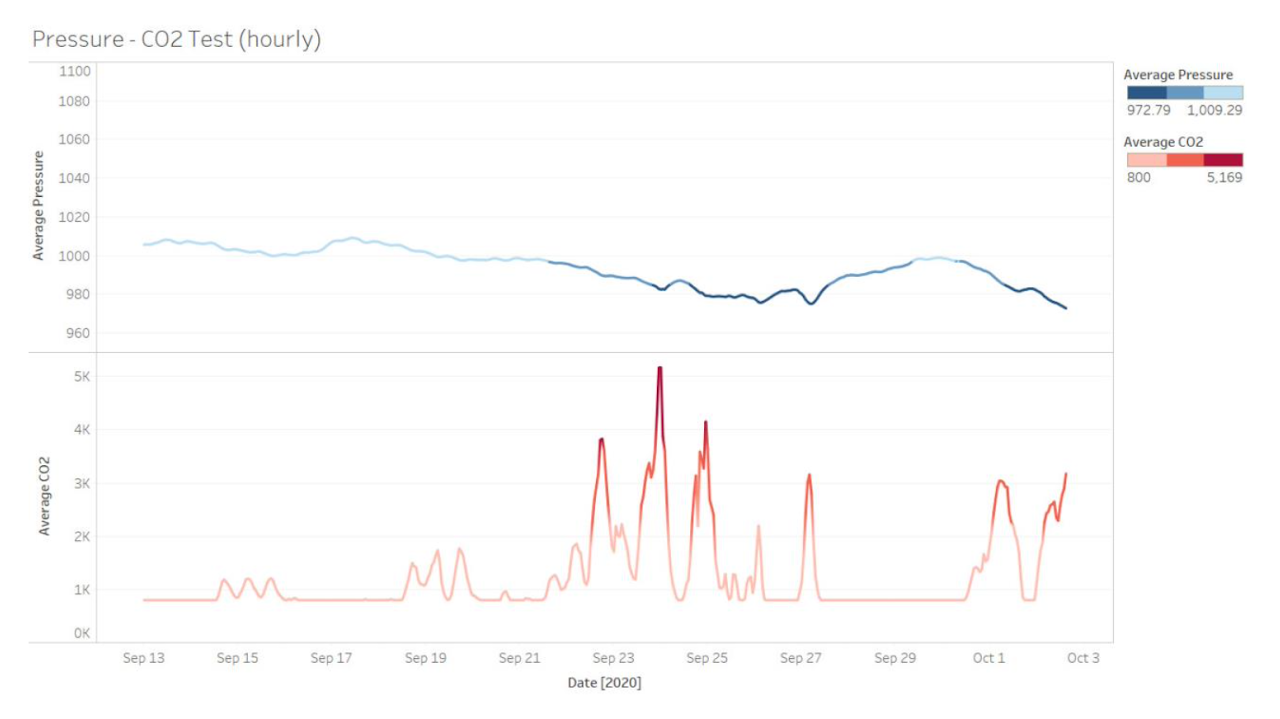

Based on initial results it shows clearly that the CO2 values measured in the house located above a
historical mine shaft can fluctuate around 5000 ppm, which is well-above the recommended range. High
values seem to show correlation with low air pressure values. Such values were not detected in the
house located normally.
